Copper Mould Tubes

  • Copper Mould Tubes 1
  • Copper Mould Tubes 2
  • Copper Mould Tubes 3
  • Copper Mould Tubes 4

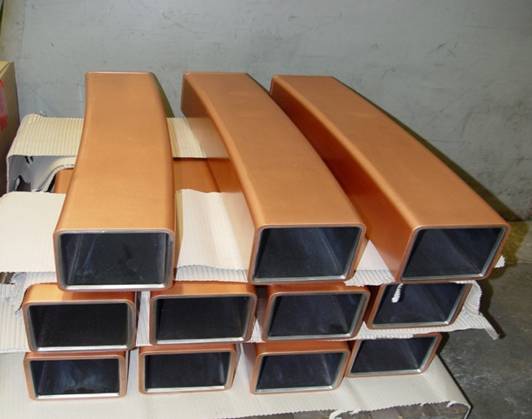

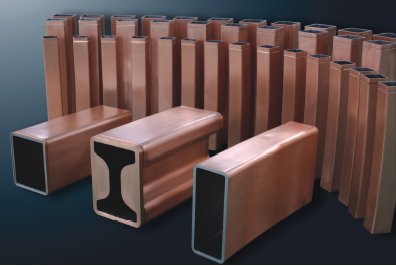

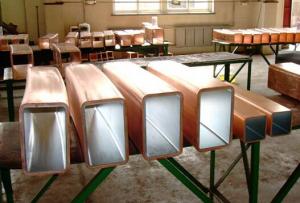

Tubular Moulds

TypesSizeCamber RadiusThicknessLength
Square Tubes50x50 – 500x5004000-170006-50700-1000
Rectangular Tubes100x340-500x6504000-170006-50700-1000
Round Tubes110-12005000-1700010-50700-1000
H-Beam Tubes70x50-120x5206000-1700012-50780-1016
Non-standard Tubes70x50-120x5206000-1700012-50780-1016

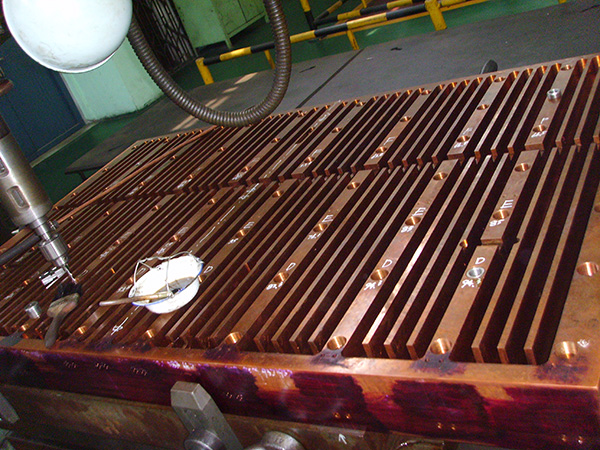

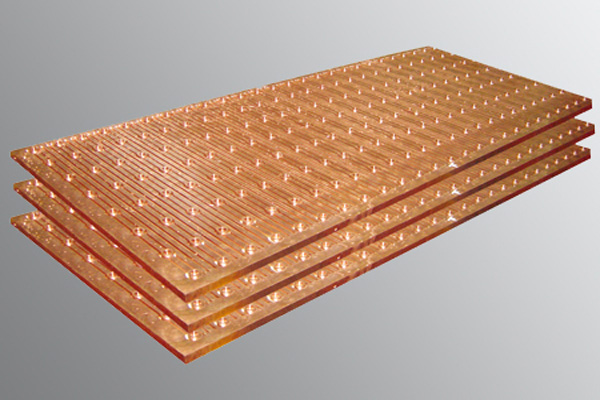

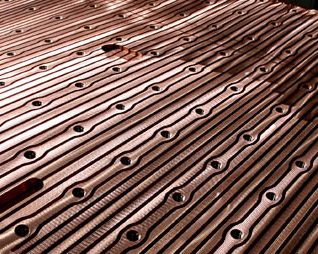

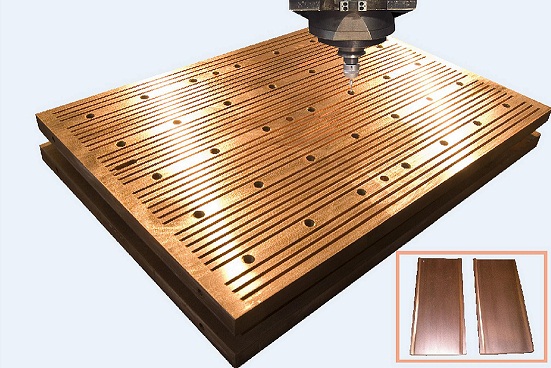

Plate Type Moulds

TypesLengthWidthThickness
Slab350-3800700-100030-75
Thin Slab1200-20001100-1200
